Fulcrum 15pro RTF Drone

Contact us for a bulk quote

Introduction

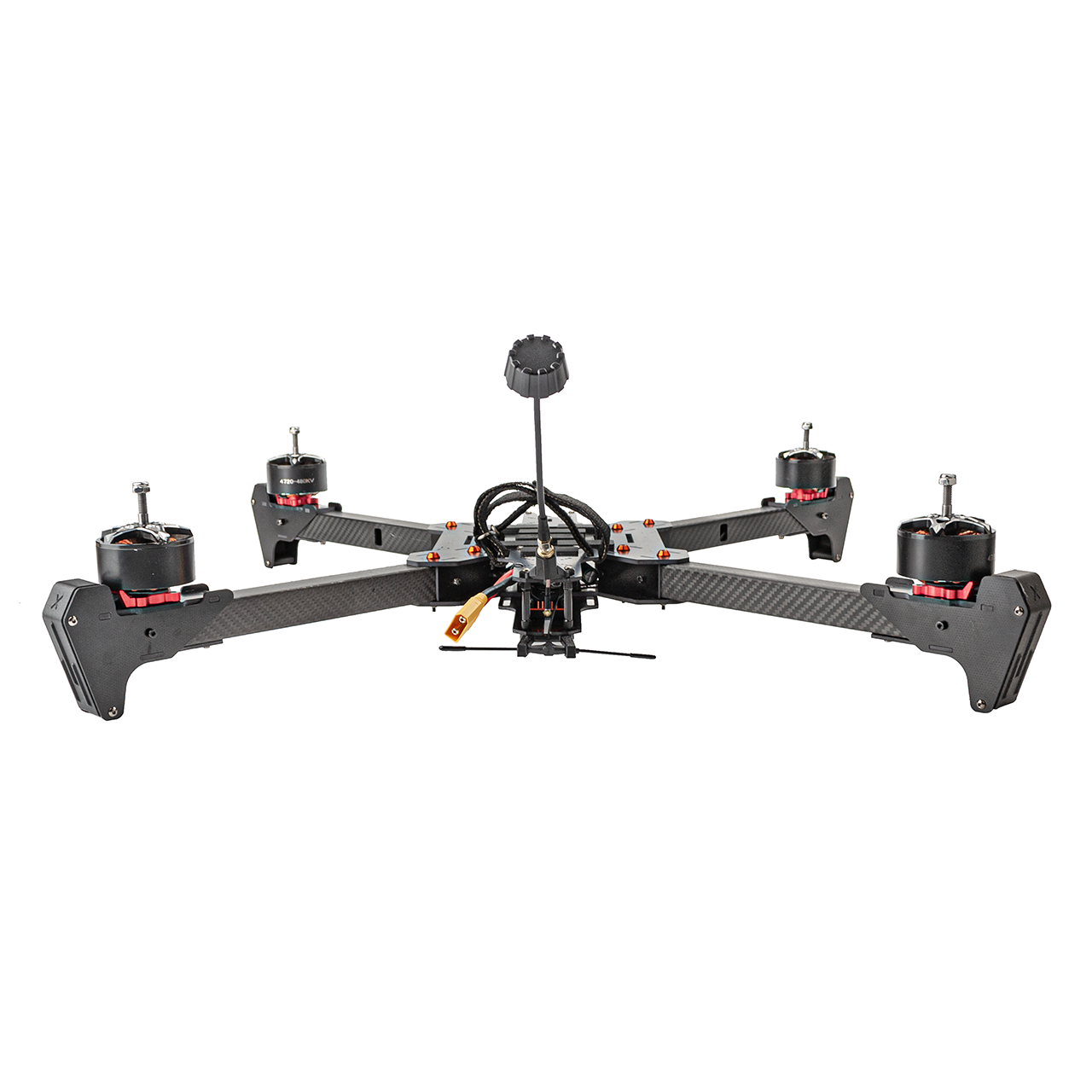

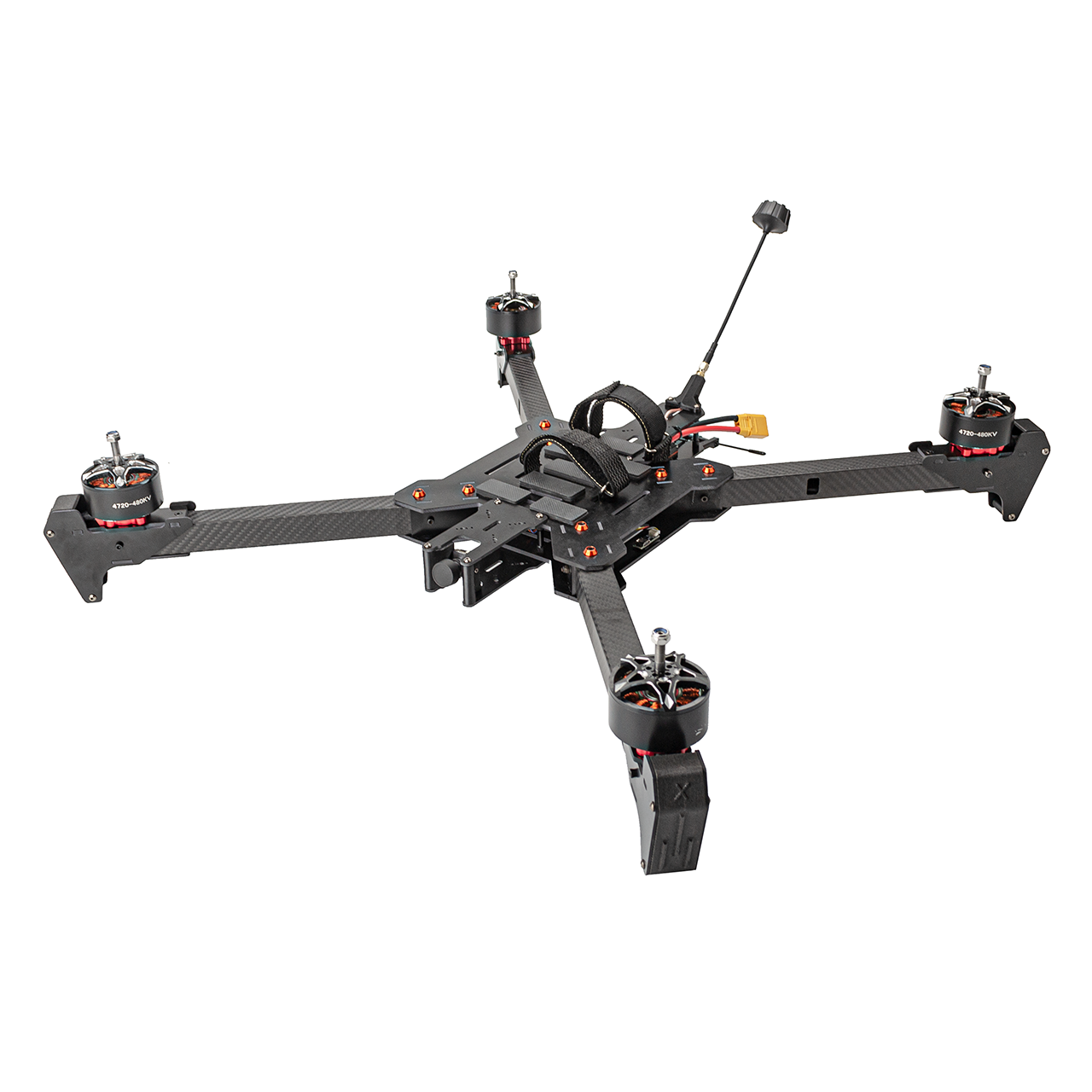

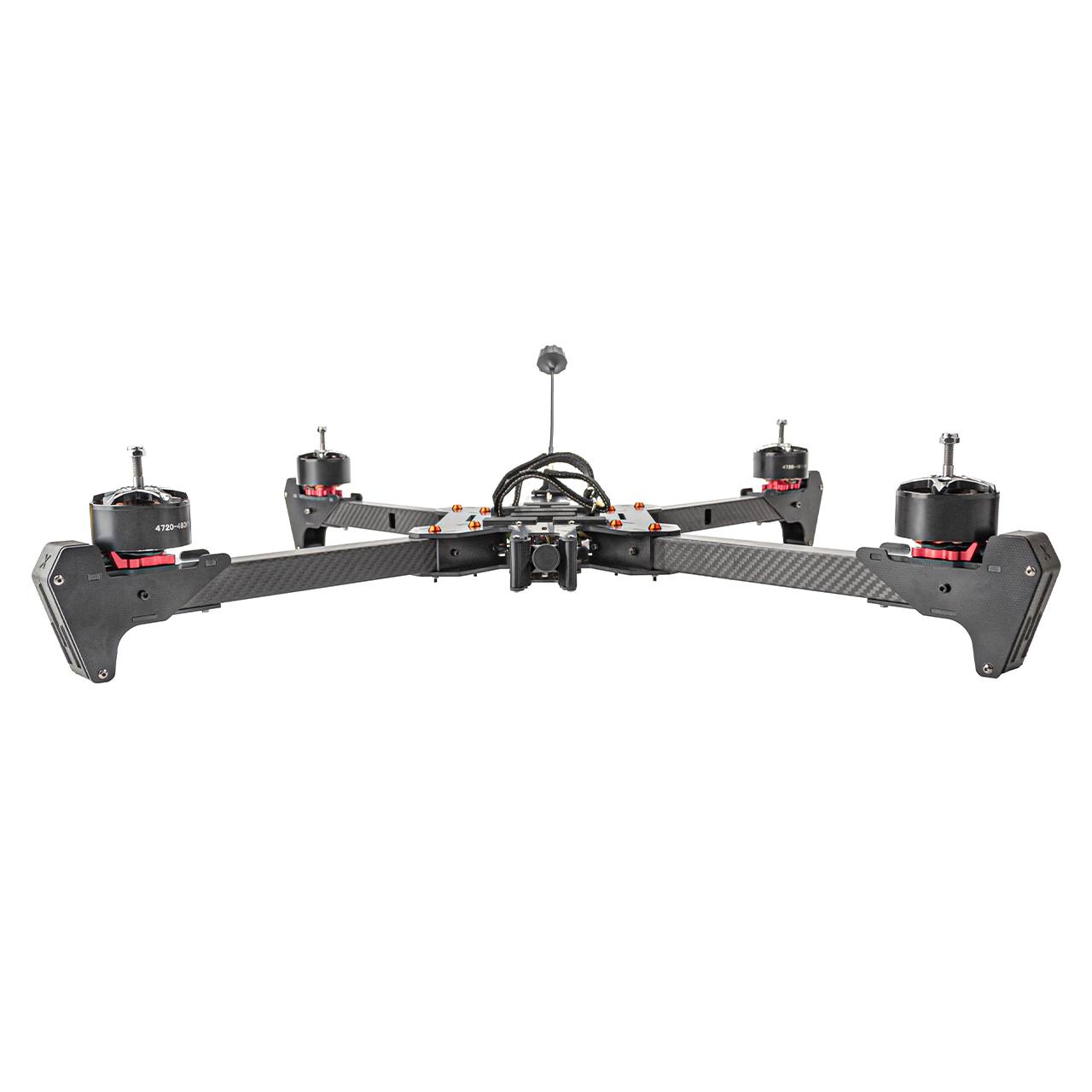

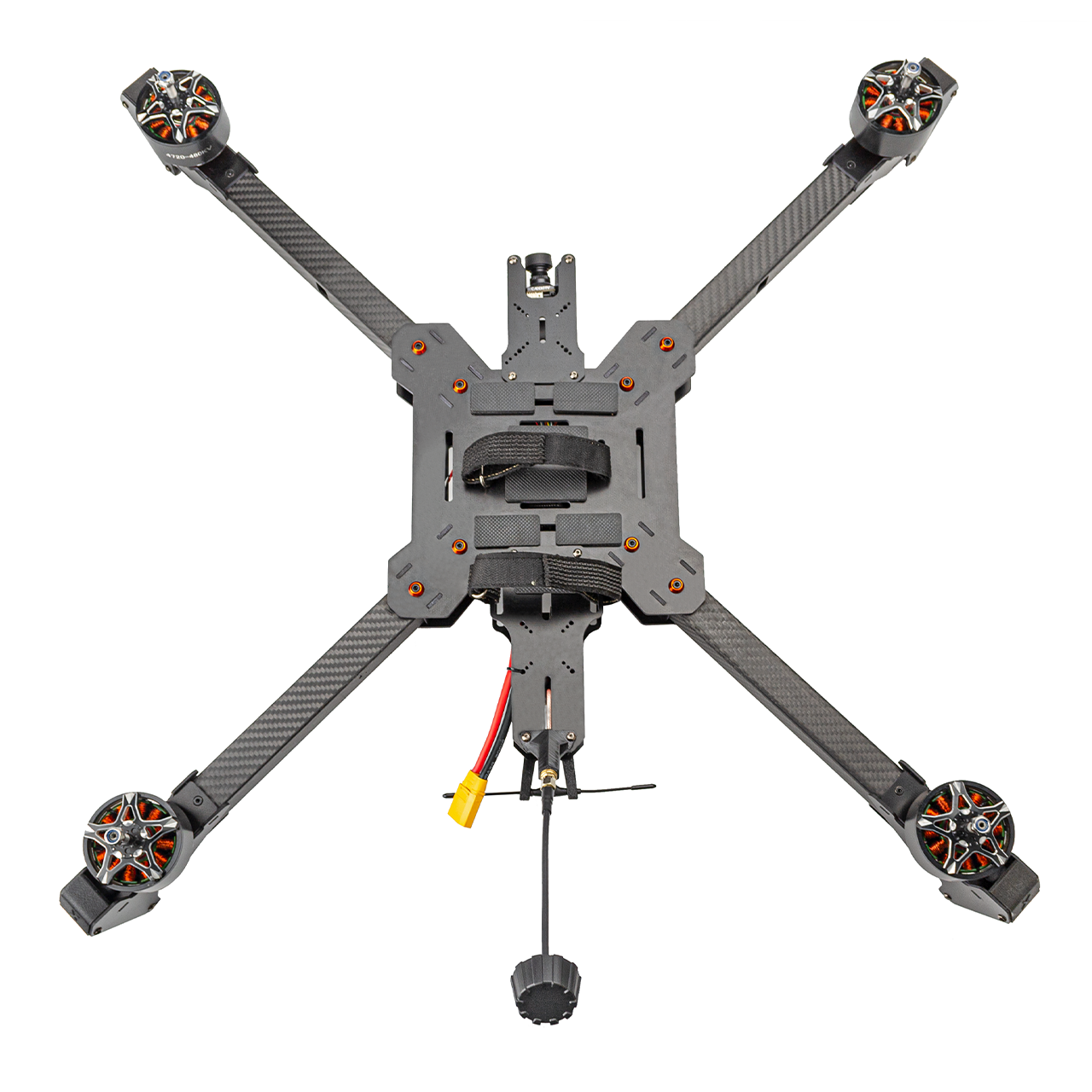

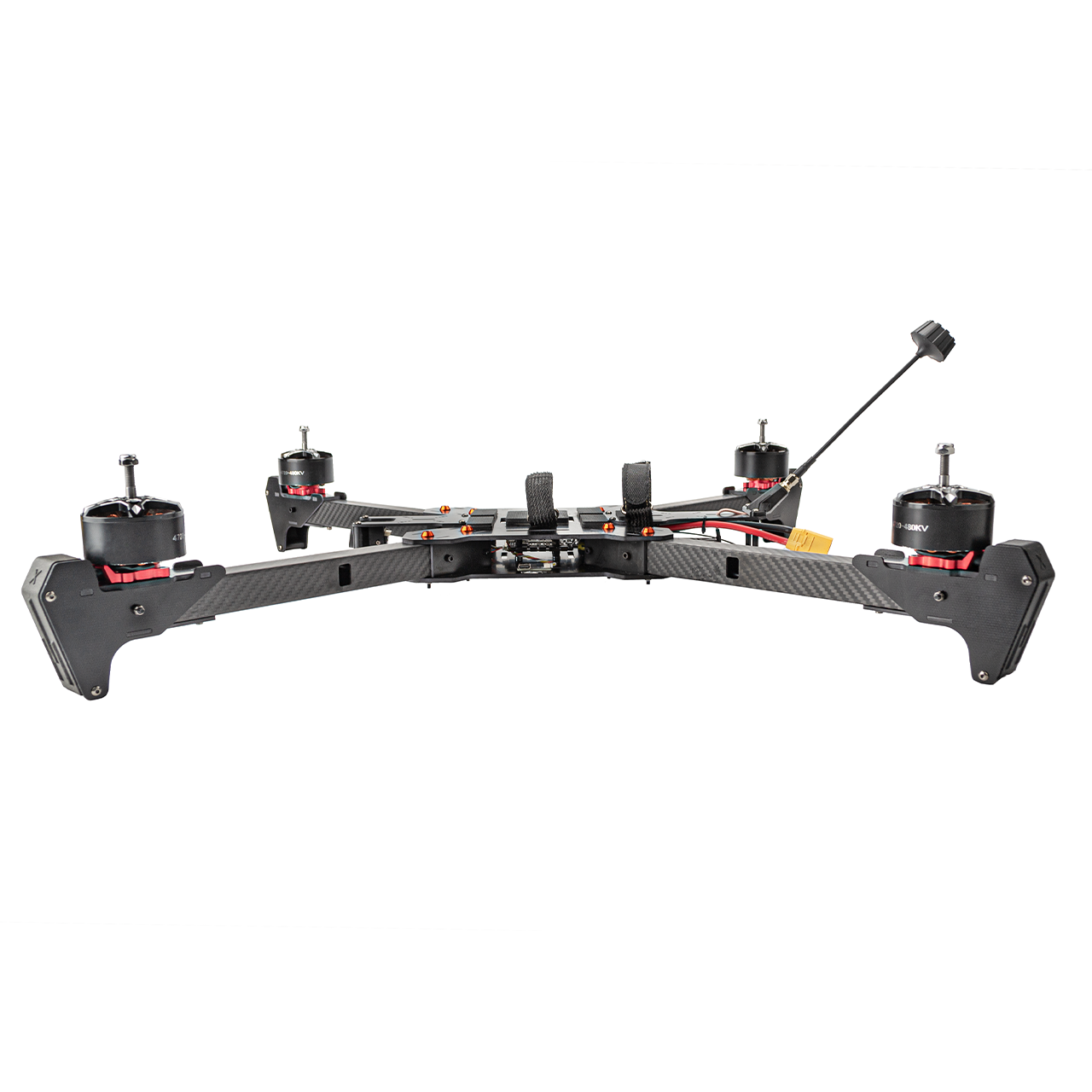

The Fulcrum 15inch Pro Verison is a high-reliability drone platform developed for long-distance and medium loads. The ultra-high-strength carbon fiber square tubes are used as the arm component, making the entire fuselage have extremely high strength and pressure resistance. At the same time, high-performance electronic components are used in combinations, giving it the possibility to perform complex tasks.

Standard Combo Specifications:

• Frame: Fulcrum 15inch Pro square carbon arm verison
• FC: XTRAFLY H743 ICM42688P FC
• ESC: BLS 8S 120A(burst 140A) 4IN1 ESC
• Motor: 4720 480KV(8S)
• Camera: Ratel 2 night vision 1500TVL
• VTX: 4.9-6.2Ghz 3W
• Receiver: ELRS 915Mhz Diversity
• Antenna: 4.9-6.2Ghz RHCP SMA 150mm
• Propeller: 1507-3 blades

Electrical Data:

• Input voltage: 6-8S
• Max current(single motor): 83A
• Max Power(single motor): 2790W


FC Specifications:

• MCU: STM32H743 32-bit processor
• IMU: ICM42688-P(SPI)
• Barometer:DSP310
• Analog OSD: AT7456E
• Blackbox: SD card slot
• PWM(dshot) output: 8 channels
• UART: 6x
• I2C: 1x(for compass)
• Input voltage: 3-8S Lipo
• Onboard BEC: 12V/2A, 5V/3A
• Connector: Type-C
• Mounting Holes: 30.5mm standard

Machanical Data:

• Dimension: 520*520*120mm
• Weight: 2.55kg
• Operating Temp: -20~45℃
• Flight Time(no payload): 50mins
• Flight Time(5kg payload): 25mins
• Max flight distance(no payload): 45km
• Max flight distance(5kg payload): 20km
• Control distance: 20km(open source)
• Max speed: 140km/h
