Description

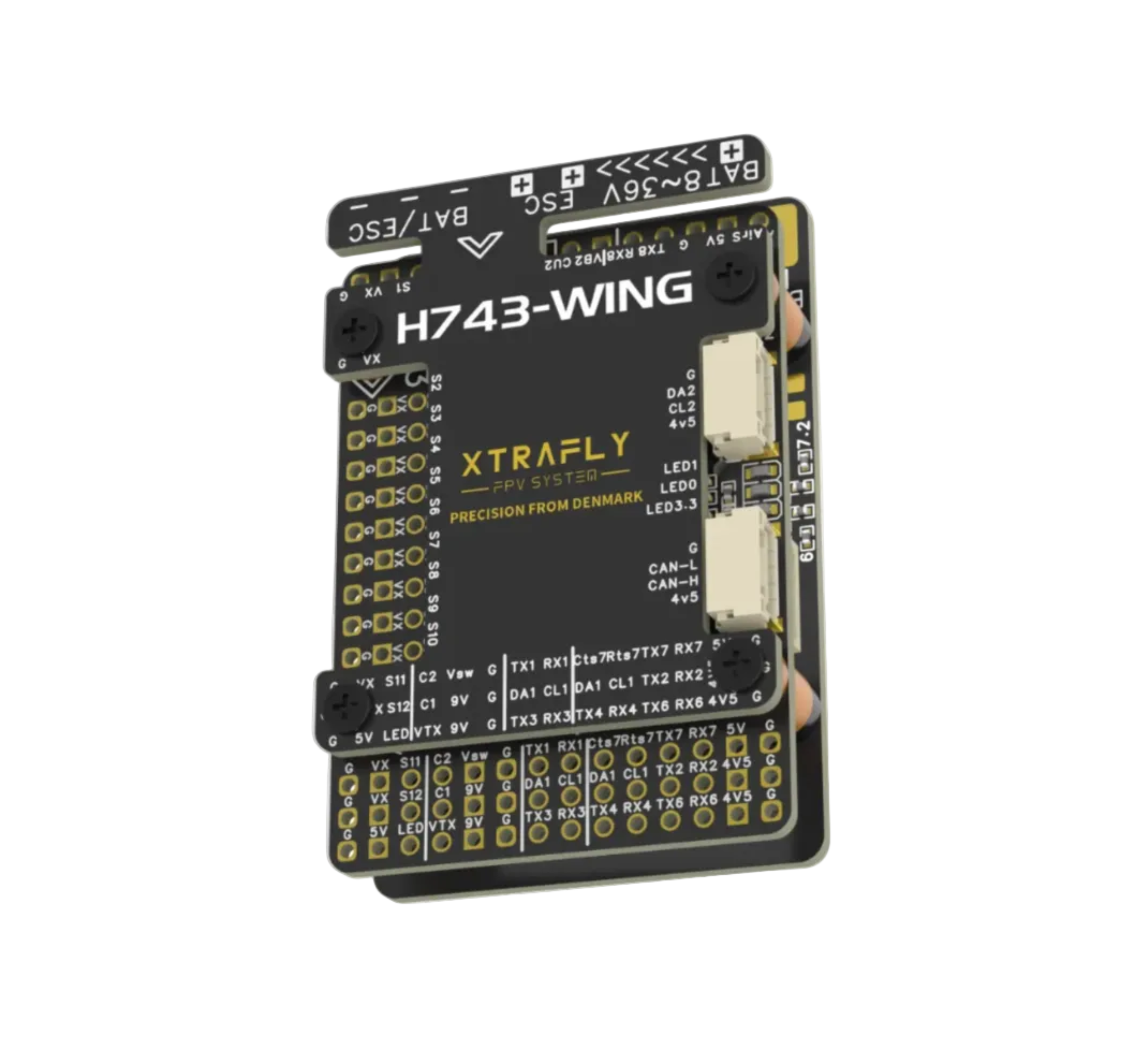

xThe XTRAFLY H743-WING is a high-voltage flight controller for long-range fixed-wing and VTOL platforms. Dual redundant IMUs, 3–12S input with TVS protection, and MATEKH743 firmware compatibility. For volume pricing, contact us for a bulk quote at sales@xtraflysystems.com.
Specifications
| MCU | STM32H743VIH6 |
| Gyro (dual IMU) | ICM42688P + ICM42605 |
| OSD | AT7456E |
| Barometer | Infineon DPS310 |
| Blackbox | MicroSD card slot (SDIO) |
| UARTs | 7 |
| ESC signal outputs | 8 |
| BEC | 5V / 12V, 2A |
| TVS protection | Yes |
| Input voltage | 3S – 12S (HV) |
| Firmware | MATEKH743 |
| Mounting | 30.5 × 30.5 mm |
| Dimensions | 54 × 36 × 13 mm |
